Bull Cross 2200E Ditch Bank Flail Mower:
86" Cut, Hydraulic Offset & Tilt
Suitable for 80-140HP
Peruzzo Bull Cross 2200E Orange Ditch Bank Mower

Alternative Views:


Availability: Usually Ships in 1 to 2 Weeks
Product Code: ORGBULLCROSS2200E


GENERAL FEATURES: SPECIFICATIONS:


ABSOLUTELY ALL THE BEST FEATURES!:
  • This Peruzzo Flail Mower Has a 16" Dia. Severe Service Duty Rotor With 20 Large Forged & Hardened Steel Hammer Blades - Peruzzo Flail Mowers Always Have the Highest Population of Blades to Provide the Best Possible Cut & Reduce the Burden on Your Tractor!
    • These Substantial Blades Can Be Sharpened Multiple Times & Typically Have a Very Long Life!
    • Use The Convenience of The Upward 90° Rotation & Remain Standing to Inspect, Sharpen & Service The Blades!
  • Peruzzo 'Bull Cross Series Ditch Bank Flail Mowers' Are Equipped With Severe Duty 'Series 8' PTO Shafts. The Series 8 PTO Shafts Are Suitable For Higher HP Ratings & 'Severe Service Duty' Usage!
  • Peruzzo Mower Gearboxes Include an Over-Running Clutch, Which Provides Two Advantages:
    • First, Easy Alignment & Attachment of the Mowers PTO Shaft to the Tractors PTO Shaft:
      • The O.R. Clutch Enables you to Freely Spin the PTO Shaft & Gearbox for Alignment!
    • Second, Smooth Shut Down:
      • The O.R. Clutch Allows the Mower Gearbox to Free Wheel to a Stop, Eliminating Abrupt Shutdowns & Wear of the PTO Brake!
  • Peruzzo Gearboxes Also Include an Easily Visible 'Oil Level Sight Glass' for Clean, Convenient & Tool Free Gearbox Oil Level Checking!
  • Offset & Head Positioning Functions Operate Hydraulically.
  • 'Raise & Lower Cylinder' Has Three Unique Features for Performance Efficiency, for Mechanical Protection of the Mower, and for Operator Safety:
    • 1) Adjustable Flow Control Valve for Hydraulic Speed Control:
      • Prevents Shock Loads From Operators Abrupt & Rapid Downward Deck Rotation (then hammering our precious earth), or Abrupt & Rapid Upward Deck Rotation (then hammering the mechanical connections):
        • Set This Valve to a Slower Setting Until You've Mastered Feathering the Controls to Rotate the Deck 90° Upward, or 60° Downward! Once You've Got it, You Can Adjust the Flow Control Valve for Faster Operation!
    • 2) Horizontal (Left to Right) Mower Deck Oscillation for Automatic Contour Adjustment:
      • The Cylinder Barrel is Pinned to a Clevis Bracket, Which is Secured to the Mower Deck via a Bracket With an Oval Pin Opening for Oscillation Travel.
    • 3) Safety Locking Valve for More Personnel & Equipment Safety!
  • Dual Breakaway (Hyd & Mech) Limited & Self-Resetting:
    • Mechanical Breakaway:
      • Lower Right Rear of 3-Pt Frame Has a Removable Pin for 'Lock-In-Place' Operation (when mowing level, predictable terrain), or Remove the Pin for Limited & Self-Resetting Breakaway Protection - Also for Front to Rear Deck Oscillation (for following uneven terrain).
    • Hydraulic Breakaway:
      • The 'Extend & Retract Cylinder' Has a Relief Valve for Limited & Self-Resetting Breakaway.
  • A Large Deck Enclosure Accommodates Higher Volumes of Material for Superior Finish Results, Superior Mulching Results, Less Burden Transferred to the Tractor & Better Ground Speeds. It's Also Large Enough for the Rear Roller to be Within the Footprint of the Deck (instead of protruding out beyond the back).
    • The Large Deck Enclosure is Also Large Enough to Have an 'Adjustable Mulching Door' (placed above the roller & behind the rear deflector)!
  • Under Deck, 'Mulching Counter Blade' Ensures Reduction of Larger Clippings & Further Reduces the Smaller Ones.
  • Full Double Deck Shell Protects the External Shell From Rocks & Other Internal Projectiles:
    • Total Deck Thickness is 3/8"!
    • Side Plates Are Also 3/8" Thick!
  • Large 8" Dia. Rear Roller Provides Mower Deck Suspension & Cutting Height Adjustment (1/2"-5"):
    • Rear Roller Also Includes a Full Width Rubber Deflector & Mud Scraper.
  • Dual Top Link Pin Holes:
    • One Oval for (more) Front to Rear Deck Oscillation.
    • One Standard Round Hole for Rigid & Level Deck Suspension.
  • Multiple Advantages of This Offsetable Mower Over Static, Center Mounted 3-Point Mowers:
    • If You're Mowing Along a Fence Line, Tree Line, Building, etc., Instead of Getting Your Entire Tractor Along Side of the Fence or Building (and risk scraping your tractor tires or snagging & damaging trees, posts, fencing, buildings, etc.), You Can Simply Keep the Offset Part of the Mower Close to the Edges You Want to Mow and Prevent Any Damage to the Tractor, the Trees, Fencing, Walls, etc. Snagging Posts, Trees or Other Secured Objects Can Also Damage the 3-Point Linkage on the Mower or Even the Pull Arms & Top Link of Your Expensive Tractor.
    • Much, Much Better Visibility: If the Edge of Any Mower is Flush With the Sidewall of Your Tractors Tire, Forget About Visibility! You'll be Cutting With Your Tractor Tire as a 'Guide', Which is ok in Open Areas, But Again, When You're Mowing up Against Obstacles, You Want Visibility, and the Offset Feature Will Provide That. It Will Also Eliminate the Need to Look Back Over Your Shoulder to See the Mower Deck. A Simple Glance to Your Right Gives You Visibility of the Outer Mowing Edge.
  • The Multi-Purpose Characteristic of Peruzzo Flail Mowers Provides A Superior Rough Cut Than Any 'Rotary Rough Cut Mower' & A Superior Finish Cut Than Any 'Rotary Finish Mower'! Plus With the 'Forged & Hardened' Hammer Blades on This Flail Mower, You Can Cut 4" Diameter Material & Still Get A Superior Finish Cut Too!
  • Peruzzo Flail Mowers Are The Safest & Most Efficient Mowers Available:
    • With Peruzzo Flail Mowers, the Possibility of Discharging Dangerous Projectiles is Dramatically Reduced Compared to Conventional Rotary Mowers, and with the Reduced Deck Depth & Weight, They're the Easiest for You & Your Tractor to Handle! Plus, the Superior 'Single-Pass' Cut of Peruzzo Flail Mowers Provides New Efficiencies by Eliminating Multiple Passes For Excellent Results!
  • With the External Gearbox & Unique Hitch Configuration of Peruzzo's Bull Cross Series Mowers, Expect to Get the Most Right Side Reach Possible!
  • 4) Anti-Static (& Oil Resistant) Belts Prevent Bearing Damage From Static Electricity.
  • Plus:
    • Secure Double Pin Clevis Cylinder Connections.
    • Dual Parking Stands.
    • PTO Shaft Storage Hook.
    • Transport Lock:
      • Use the Transport Lock (in horiz. or vert. position) When Driving, or Trailering From Place to Place, to Prevent Excess Stress on Supporting Linkages & to Prevent Cylinder Rods From Extending!

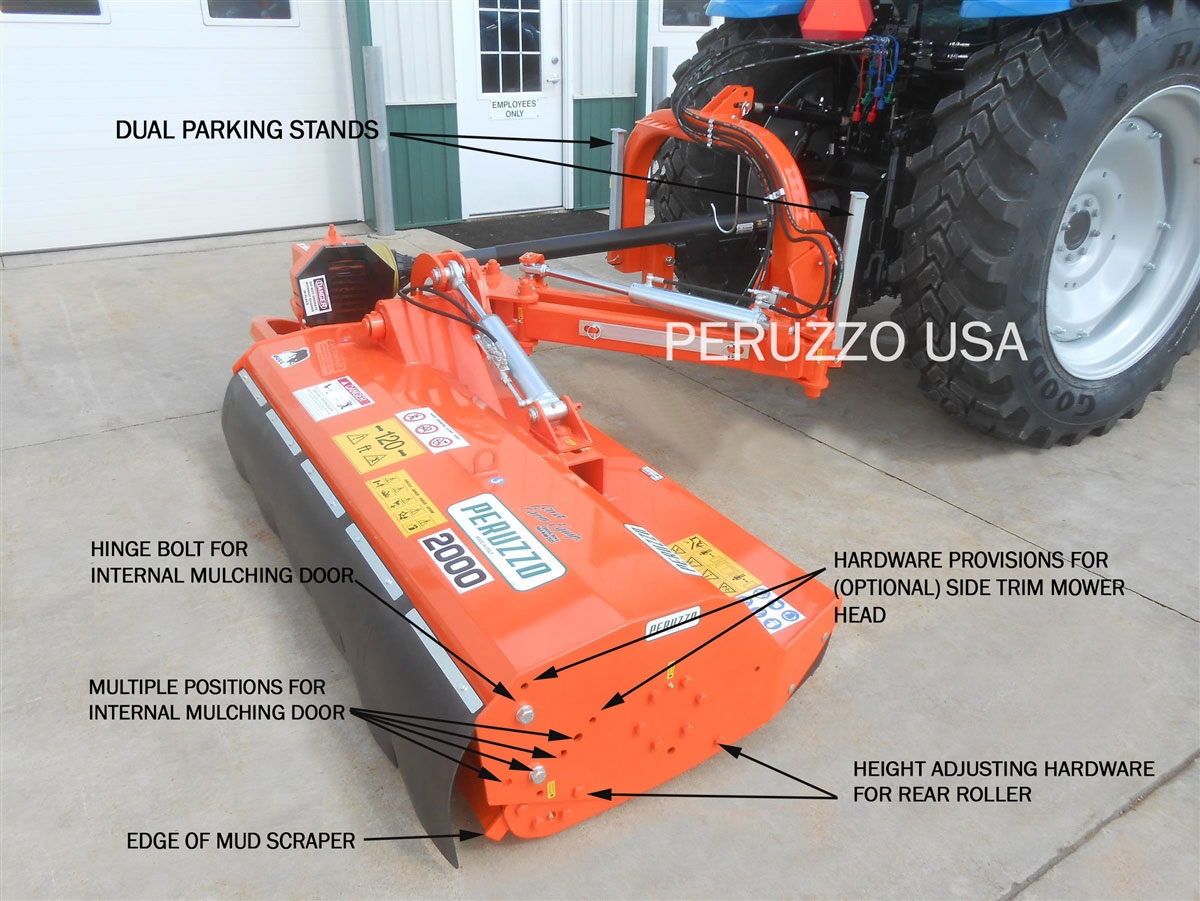

  • Sample Photos Show the Bull Cross 2000E, But This Listing is for the Bull Cross 2200E (As Stated Above), and Only for the Bull Cross Mower - The Tractors Are Not Included!
  • Mower Ships Assembled & Ready To Use:
    • This Means No Assembly Headaches from Poor Instructions, No Missing Parts & Associated Delays, No Special Tools, No Knuckle Busters & No Waiting Until It's Assembled Before First Use!
  • Mower Ships with 540RPM PTO Shaft!
  • All of These Excellent Features Work Together to Outperform Your Expectations in Rough Cutting, Mulching & Finish Cutting Applications, With Beautiful, Single Pass Results, With Efficient Ground Speeds & With Ease of Demand on Your Costly Tractor & it's Fuel Tank! Most of All, it Makes Mowing Fun Again!
